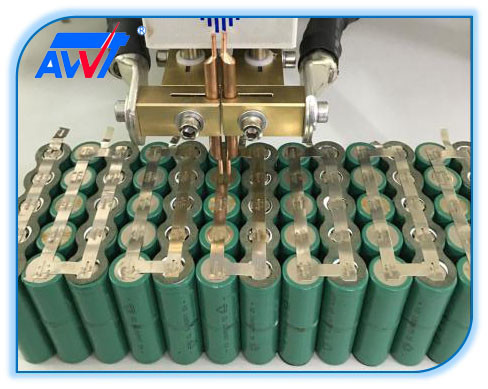

E-bike Electric car Lithium Battery Spot Welder for 18650 32650
HD-2119 380V 5000A
Product model:HD-2119
Feature
1. High performance CPU control, 128 x 64, LCD blue screen display
2. (Single) Double pulse energy storage welding to reduce welding
spatter;
3. Electronic voltage stabilization automatic compensation
function, welding output is not affected by network voltage
fluctuation;
4. The width of pulse 1 and 2 can be adjusted (discharge time)
5. Function of current monitoring and warning of abnormal current.
6. 10 welding procedures are stored to facilitate setting and
calling.
7. With radio (RFI) and electromagnetic dry (EMI) protection
functions;
8. The pulse waveform can be adjusted (long, medium and short) to
suit fine welding.
| Input power supply | AC 220 v / + 50 hz |
| Air pressure | 0.5-0.8 MPa |
| Pre-welding Current | 00-99 |
| Welding Current | 00-99 |
| Welding Time | 1.0ms—30.0ms (0.1ms tolerance adjustable) |
| Drive method | Pneumatic or Pedal |
| Weight | 75KG |
| Dimension | 900L x 700W x 1250H |
Feature:
1. Load current check and electrostatic current control of
switching mode are beneficial to high quality welding control.
2. 4KHz high-frequency modulation inverters control is conducive to
high-speed response and high-quality welding control.
3. The application of two-stage electrification function is
conducive to overcoming the coating problem of welded workpiece and
adapting to various technological requirements.
4. Slow-up and slow-down function is conducive to restraining the
splash phenomenon in welding and the switching of eight welding
specifications is conducive to fast changing welding parameters
according to different welding requirements.
5. It has the function of current monitoring. it will give an alarm after judging the value beyond the set value,
Notice on AWT Spot Welding Equipments
| Spot Welder | Input Voltage | Nickel Thickness | Price Level |
| Stored Energy Welder | AC 220V/50HZ 5000A | Nickel Alloy≦0.2mm Pure Nicel≦0.15mm | Low |
| DC Inverter Welder | AC 380V/50HZ 5000A | Nickel Alloy≦0.2mm Pure Nicel≦0.15mm | Middle |
| DC Inverter Welder | AC 380V/50HZ 8000A | Pure Nicel≦0.2mm,slot Nickel≦0.4mm | High |
| Transistor Welder | PD-6000A/10000A | Pure Nicel≦0.2mm,slot Nickel≦0.4mm | Expensive |
Looking forward to good cooperation soon
